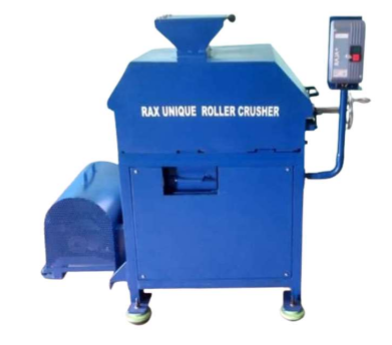

| PRINCIPLE OF OPERATION | Using two or more rollers to crush materials by compressing, shearing, and impacting them |
| APPLICATIONS | Suited ideally for secondary crushing Clinker, Bauxite,Magnetite, Hematite, Laterite, Limestone, Manganese |
| INDUSTRY | Cement, Steel, Power Plant and Mining. |
| TYPES OF ROLLERS | Manganese Steel / Hardened Steel(D2) |
| ROLL DIAMETER | 250 mm (Grooved / Plain) |
| ROLLS WIDTH | 150 mm |
| ROLLER SPEED | Customized |
| ROLL GAP ADJUSTMENT | The gap can be adjusted from 1- 12 mm |
| FEED SIZE | Upto 28 mm |
| OUTPUT SIZE | Upto 1 to 2 mm |
CRUSHING CAPACITY | ~ 220 kg / Hr (it varies on Reduction Ratio) |
| HOPPER FEEDER | Feed Hopper with size 380 X 380 mm provided with
screen of 18 mm Dia openings for protecting entering the crushing zone. |
| MOTOR SIZE | 2.25 KW Heavy Duty Motor (3 HP) |
| ELECTRIC SUPPLY | 3 ϕ/440 V/1700 WATTS |
| TYPES OF MOUNTING | Mounted on fabricated steel frame. |
| WARRANTY | 12 Months from Date of Installation OR 14 Months from Date of Dispatch |
| MANUFACTURING ADDRESS | RAX UNIQUE TECHNOLOGIES, GSTIN- 33AAHCR5134Q1ZZ, No-145,1st floor, Tasiow Nagar, Ramamoorthy 3rd Main Road, Pazhanthandalam, Thirumudivakkam, Chennai, Pincode-600044 |
